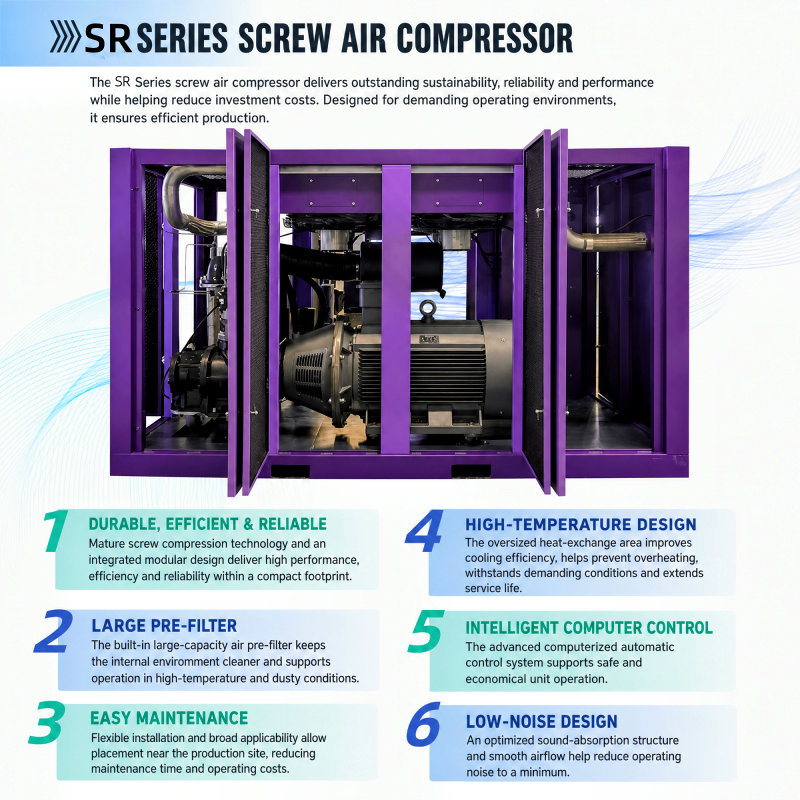

The Air Cooled Screw Compressor is developed for stationary factory installations that need reliable cooling without a separate cooling-water system. Its enlarged heat-exchange area supports efficient heat dissipation, helps reduce overheating risk and promotes stable operation in demanding production environments. The integrated industrial compressor system includes a robust screw air end, air intake treatment and computerized control for straightforward daily management. The cabinet layout provides convenient access to service points, helping maintenance teams reduce inspection time. With models ranging from 7.5 to 400 kW and airflow options from1.0 to 73 m³/min, the series can serve small workshops, production lines and larger centralized air stations.

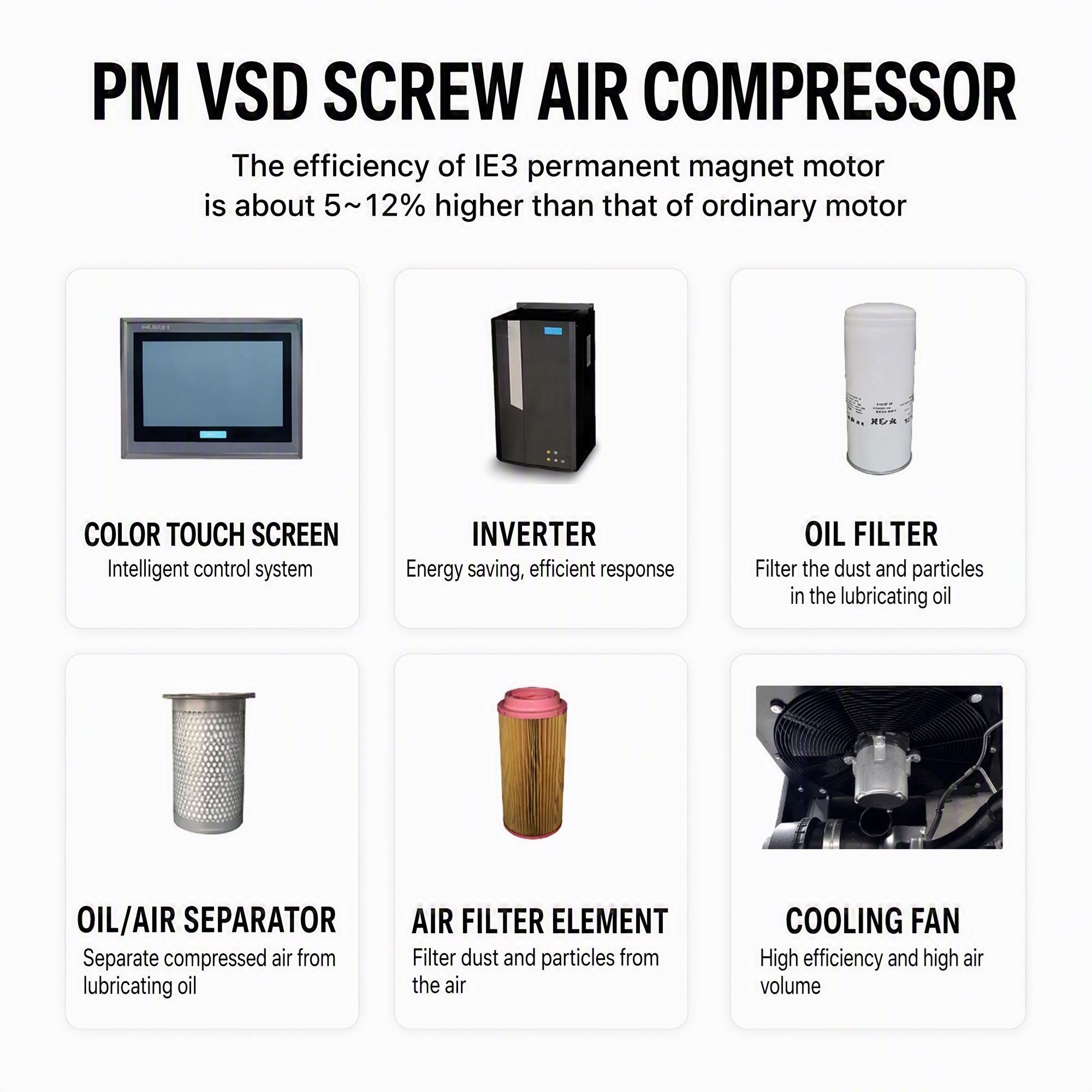

This 15kW PM VSD air compressor delivers stable air pressure from 6 to 8 bar. Adopting permanent magnet variable speed drive technology, it automatically adjusts output according to actual air consumption, greatly cutting energy waste. Reliable performance and low maintenance make it ideal for workshop air supply.
Customized Air Compressor Solutions
We provide customized air compressor solutions tailored to your specific applications and operating conditions. Customers can choose from different compressor types, exterior designs, power ratings in kilowatts, and working-pressure configurations. Whether you need an integrated screw air compressor for laser cutting, a PM VSD energy-saving model, or a customized industrial air system, our engineering team can configure the equipment according to your required airflow, pressure, voltage, installation space, and working environment. From appearance and internal components to performance specifications, every solution can be adapted to deliver reliable operation, stable pressure, efficient energy use, and convenient maintenance. Send us your technical requirements, and we will recommend a suitable configuration for your project.
We also offer comprehensive after-sales support services, including on-site installation guidance, operation training, and regular maintenance services, to ensure that customers have no worries during the use of the equipment.
We at SANROCK POWER are committed to working hand in hand with our customers to jointly create a bright future!
Product explanation
| SRM Series PM VSD Screw Air Compressor Technical Specifications |
| Model |
Discharge Pressure (bar) |
Power (kW) |
Air Delivery (m³/min) |
Cooling Method |
Dimensions L × W × H (mm) |
| SRM7.5A-8 |
6-8 |
7.5 |
1.0 |
Air-Cooled |
710 × 580 × 810 |
| SRM11A-8 |
6-8 |
11.0 |
1.7 |
Air-Cooled |
850 × 680 × 1055 |
| SRM15A-8 |
6-8 |
15.0 |
2.4 |
Air-Cooled |
850 × 680 × 1055 |
| SRM22A-8 |
6-8 |
22.0 |
3.6 |
Air-Cooled |
1080 × 800 × 1180 |
| SRM37A-8 |
6-8 |
37.0 |
6.0 |
Air-Cooled |
1280 × 950 × 1230 |
| SRM55A-8 |
6-8 |
55.0 |
10.2 |
Air-Cooled |
1780 × 1180 × 1500 |
| SRM75A-8 |
6-8 |
75.0 |
13.2 |
Air-Cooled |
1780 × 1180 × 1500 |
| SRM90A-8 |
6-8 |
90.0 |
16.6 |
Air-Cooled |
2080 × 1430 × 1500 |
| SRM110A-8 |
6-8 |
110.0 |
21.0 |
Air-Cooled |
2850 × 1850 × 1950 |
| SRM132A-8 |
6-8 |
132.0 |
24.0 |
Air-Cooled |
2850 × 1850 × 1950 |
| SRM160A-8 |
6-8 |
160.0 |
28.0 |
Air-Cooled |
3500 × 1800 × 2100 |
| SRM185A-8 |
6-8 |
185.0 |
32.5 |
Air-Cooled |
3500 × 1800 × 2100 |
| SRM200A-8 |
6-8 |
200.0 |
35.0 |
Air-Cooled |
3800 × 2000 × 2200 |
| SRM250A-8 |
6-8 |
250.0 |
45.0 |
Air-Cooled |
3600 × 2000 × 2050 |
| SRM280A-8 |
6-8 |
280.0 |
52.0 |
Air-Cooled |
4200 × 2150 × 2200 |
| SRM315A-8 |
6-8 |
315.0 |
56.0 |
Air-Cooled |
4200 × 2150 × 2200 |
| SRM355A-8 |
6-8 |
355.0 |
65.0 |
Air-Cooled |
5000 × 2100 × 2300 |
| SRM400A-8 |
6-8 |
400.0 |
73.0 |
Air-Cooled |
6000 × 2150 × 2400 |
| |
|
|
|
|
|
| Note: Specifications are subject to change without prior notice. |
| SR Series Fixed-Speed Screw Air Compressor Technical Specifications |
| Model |
Discharge Pressure (bar) |
Power (kW) |
Air Delivery (m³/min) |
Cooling Method |
Dimensions L × W × H (mm) |
| SR4A-8 |
6-8 |
4.0 |
0.6 |
Air-Cooled |
750 × 580 × 810 |
| SR5.5A-8 |
6-8 |
5.5 |
0.8 |
Air-Cooled |
750 × 580 × 810 |
| SR7.5A-8 |
6-8 |
7.5 |
1.0 |
Air-Cooled |
900 × 580 × 810 |
| SR11A-8 |
6-8 |
11.0 |
1.7 |
Air-Cooled |
1100 × 680 × 955 |
| SR15A-8 |
6-8 |
15.0 |
2.4 |
Air-Cooled |
1100 × 680 × 955 |
| SR22A-8 |
6-8 |
22.0 |
3.6 |
Air-Cooled |
1250 × 800 × 1120 |
| SR37A-8 |
6-8 |
37.0 |
6.0 |
Air-Cooled |
1500 × 1000 × 1300 |
| SR55A-8 |
6-8 |
55.0 |
10.2 |
Air-Cooled |
1780 × 1180 × 1500 |
| SR75A-8 |
6-8 |
75.0 |
13.2 |
Air-Cooled |
1780 × 1180 × 1500 |
| SR90A-8 |
6-8 |
90.0 |
16.6 |
Air-Cooled |
2080 × 1430 × 1500 |
| SR110A-8 |
6-8 |
110.0 |
21.0 |
Air-Cooled |
2850 × 1850 × 1950 |
| SR132A-8 |
6-8 |
132.0 |
24.0 |
Air-Cooled |
2850 × 1850 × 1950 |
| SR160A-8 |
6-8 |
160.0 |
28.0 |
Air-Cooled |
3500 × 1800 × 2100 |
| SR185A-8 |
6-8 |
185.0 |
32.5 |
Air-Cooled |
3500 × 1800 × 2100 |
| SR200A-8 |
6-8 |
200.0 |
35.0 |
Air-Cooled |
3800 × 2000 × 2200 |
| SR250A-8 |
6-8 |
250.0 |
45.0 |
Air-Cooled |
3600 × 2000 × 2050 |
| SR280A-8 |
6-8 |
280.0 |
52.0 |
Air-Cooled |
4200 × 2150 × 2200 |
| SR315A-8 |
6-8 |
315.0 |
56.0 |
Air-Cooled |
4200 × 2150 × 2200 |
| SR355A-8 |
6-8 |
355.0 |
65.0 |
Air-Cooled |
5000 × 2100 × 2300 |
| SR400A-8 |
6-8 |
400.0 |
73.0 |
Air-Cooled |
6000 × 2150 × 2400 |
| |
|
|
|
|
|
| Note: Specifications are subject to change without prior notice. |

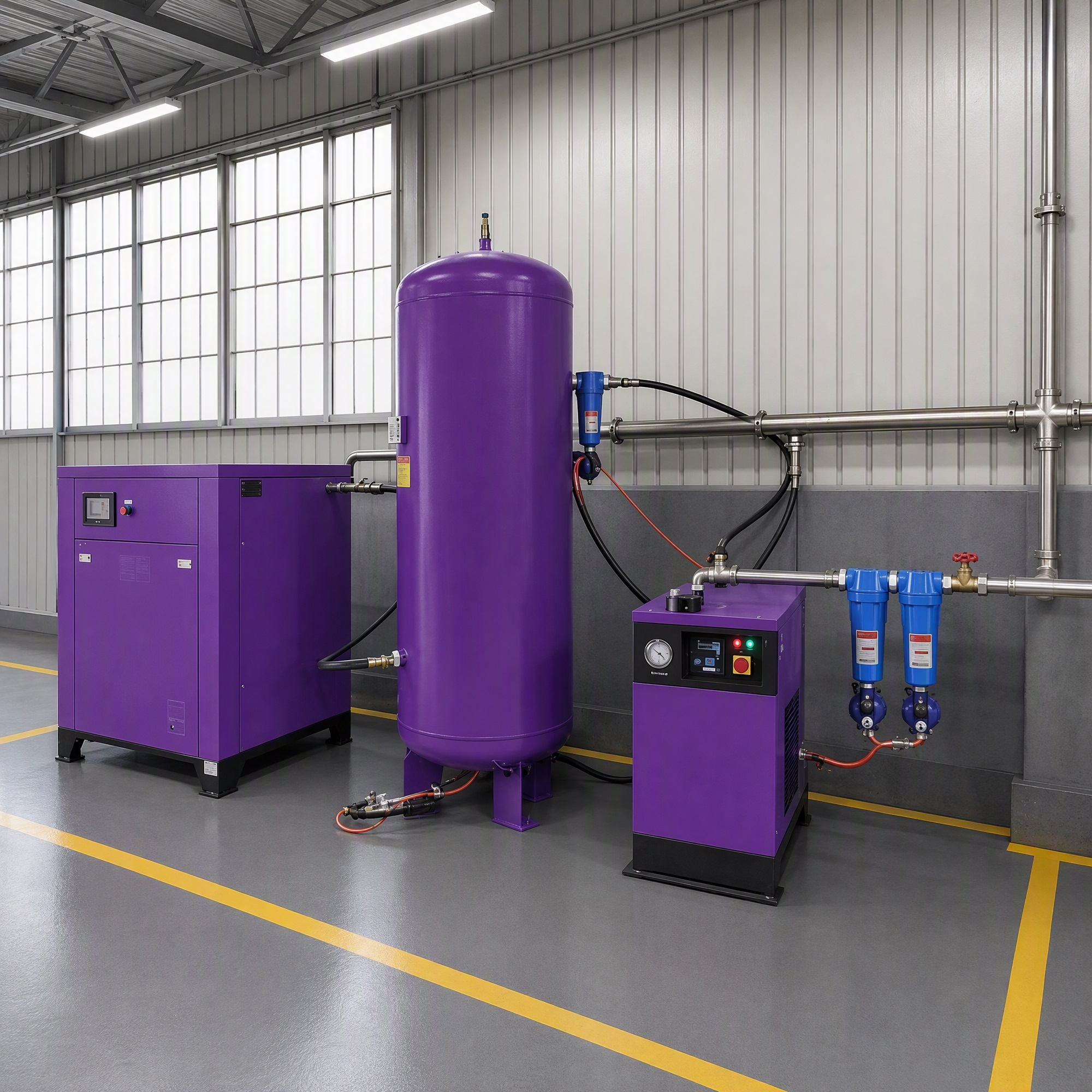

The all-in-one modular design integrates the air compressor, air receiver, refrigerated air dryer and filters into a single unit. It is easy to install, ready to use after connection and can be placed directly at the worksite.
1.Do you provide design drawing and customization services for complete machines?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our customization process begins with a detailed needs assessment, followed by prototype design, virtual simulation, and iterative refinement. We ensure compliance with international standards like ISO or API, and can integrate specific features such as modular configurations, remote monitoring interfaces, or enhanced corrosion protection.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
3.How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
